A console that shows no signs of life, one that powers on briefly then shuts off, or one with damage severe enough to affect multiple functions at once usually points to a fault on the motherboard itself. The board is the single most complex component in any console, carrying the processor, memory, and most of the connected circuitry in one place. Because so much is packed into one board, a fault in a single small component can produce symptoms that look far more serious than they actually are. At Milaaj, our technicians pinpoint exactly which part of the board has failed before recommending a repair, since the term motherboard repair covers a wide range of possible work, from a targeted chip swap to something far more involved.
Not every dead console needs board level work at all. A bad power cable, a faulty wall socket, or a stuck standby state can look exactly like a failed motherboard from the outside. Ruling these out first can save you an unnecessary repair entirely, and it is one of the first things we check during diagnosis.
Whether the issue appeared after a power surge, developed gradually from years of heat exposure, or showed up after a drop or spill, we can identify the cause before any work begins.
Signs Your Console Has a Motherboard Problem
These are the symptoms our technicians see most often when the fault genuinely sits on the board rather than a simpler cause.
- Console shows no lights, sound, or response at all when powered on. This can point to a failed power circuit on the board, though it is worth ruling out the cable and socket first.
- Console powers on briefly, then shuts off on its own. This often points to a protective shutdown triggered by a board level fault or overheating.
- Random shutdowns or restarts during normal use, unrelated to overheating. This can point to a failing power delivery component on the board.
- Multiple unrelated functions failing at once, such as HDMI, USB, and Wi-Fi all acting up together. This pattern often points to a shared board component, such as a south bridge chip, rather than several separate faults.
- Console makes an unusual beep pattern or error code on startup. Many consoles use beep codes or lights to signal specific board level faults.
Is It Really the Motherboard? Common Look-Alike Causes
A surprising number of consoles brought in as motherboard failures turn out to have a simpler explanation.
- A damaged power cable or a faulty wall socket can produce symptoms that look identical to a dead board, including no lights and no response at all.
- A console stuck in a frozen standby state after an update or crash can appear completely dead until it receives a full, extended power drain.
- External accessories or a faulty USB device connected during startup can occasionally prevent a clean boot in a way that mimics board failure.
- A blown internal fuse, a much simpler and cheaper fix than a board repair, can also produce a no power symptom that looks like a dead motherboard from the outside.
Our technicians rule out these simpler causes first during diagnosis, so you are never quoted for board level work the console did not actually need.
Chip-Level Repair or Full Board Replacement? What’s Actually Needed
The term motherboard repair gets used loosely, and understanding the difference protects you from paying for more than the fault actually requires.
- Most genuine board level faults are chip specific, affecting one component such as a power management chip, a south bridge, or a firmware chip, rather than the entire board.
- A targeted chip level repair replaces just the failed component using precision soldering equipment, which is both more affordable and more reliable than swapping the whole board.
- A full motherboard swap is rarely straightforward, since many consoles pair the board’s firmware to specific internal components like the Wi-Fi module or the disc drive, meaning a swapped board often will not boot correctly without matching, paired parts.
- Some shops quote a full board replacement as a catch all term for work that is actually a targeted chip repair, which can significantly inflate the cost unnecessarily.
Our technicians diagnose the specific failed component and recommend the most targeted, cost effective repair rather than defaulting to the most expensive option.
Common Causes of Motherboard Damage in Dubai
Understanding what caused the fault helps explain why some repairs are contained and others take more work.
- Power surges or unstable electrical supply. A sudden voltage spike can damage sensitive board components, especially the power delivery circuitry.
- Prolonged overheating. Consoles that run hot for extended periods place ongoing thermal stress on the board, gradually weakening solder joints and components.
- Liquid exposure and resulting corrosion. Liquid that reaches the board can cause shorts and corrosion that damage specific chips or entire sections of circuitry.
- Physical impact from a drop or rough handling. A hard knock can crack solder joints or dislodge components even without visible external damage.
- Natural wear on solder joints over years of use. Heat cycling from normal operation gradually stresses solder connections, and older consoles are more prone to this kind of failure.
all platforms
Motherboard Repair Across PlayStation, Xbox, and Nintendo Switch
Board design and common failure points vary across gaming platforms, which affects both diagnosis and repair.
- PlayStation: PS5 boards commonly develop faults in the south bridge chip, which manages power distribution along with USB, Bluetooth, and Wi-Fi, making a range of seemingly unrelated symptoms trace back to a single component.
- Xbox: shares similar board complexity to PlayStation, with power delivery and I/O management chips being common failure points after years of use or exposure to heat and power fluctuations.
- Nintendo Switch: as a smaller, more compact device, board level faults are often connected to charging circuitry or the connection points for the Joy-Con rails, in addition to the same kinds of power and chip level faults seen on other platforms.
- Regardless of platform, board level work requires precision equipment and genuine expertise, since this is the most technically demanding repair a console can need.
step by step process
Our Console Chip-Level Repair Process in Dubai
Every motherboard repair follows a careful, methodical sequence given the complexity of the work.
1
Free diagnostic check. We rule out simpler causes first, then use diagnostic tools to identify exactly which board component has failed.
2
Careful disassembly. The console is opened to access the board without disturbing other internal components.
3

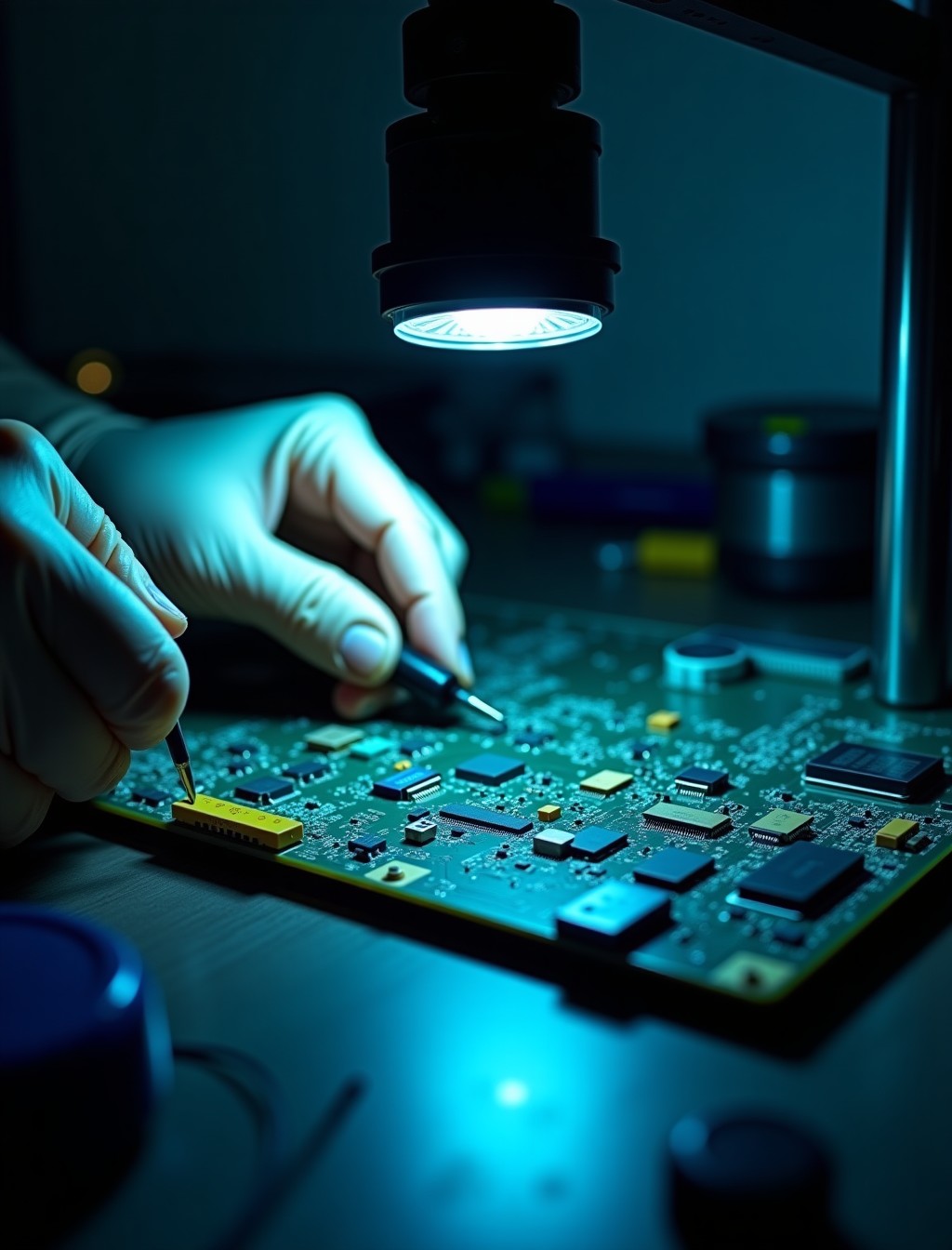

Chip-level repair. The specific failed component, such as a power chip or south bridge, is removed and replaced using precision soldering equipment matched to your exact console model.
4
Function testing. The console is tested across power delivery, video output, USB, wireless connectivity, and overall stability to confirm the repair holds.
5
Final quality check. We confirm stable, reliable operation under normal use before handing the console back to you.
why milaaj
Why Choose Milaaj for Console Board-Level Repair in Dubai
Board level work is the most technically demanding repair a console can need, so real expertise matters.
- 35,000+ customers served across the UAE, with gaming console repairs handled regularly across PlayStation, Xbox, and Nintendo.
- Certified technicians experienced in precision chip level soldering and board diagnostics.
- Genuine and premium grade parts used for every board level repair, never mismatched components.
- Up to 12 months parts and labor warranty on completed motherboard repairs.
- Free diagnostics with no obligation to proceed once you know what is actually wrong.
- Free pickup and delivery across Dubai, so a dead console does not mean a trip across the city.
- Data privacy practiced on every device, with no unnecessary access to your saved games or accounts.
- 24/7 support available in Arabic, English, Urdu, Hindi, Malayalam, and Tamil.
Related Repairs
- Gaming Console Overheating Repair Dubai – Prolonged overheating is a leading cause of board level damage, making this a relevant cross link for prevention and related diagnosis.
- Gaming Console Water Damage Repair Dubai – Liquid exposure is a common cause of board level corrosion and shorts, making this a useful companion page.
- Gaming Console Data Recovery – Relevant where board level damage puts saved games or stored data at risk during a more extensive repair.
- Gaming Console Trade In / Buyback – Relevant for older consoles where the extent of board damage makes replacement more practical than repair.
FAQs
Frequently Asked Questions About Gaming Console Motherboard Repair
My console shows no signs of life at all. Does that always mean the motherboard is dead?
Not necessarily, since a damaged cable, faulty socket, blown fuse, or a stuck standby state can all produce the exact same symptom. A proper diagnostic rules these out before concluding the board itself has failed, which can save you from an unnecessary repair bill.
Is a full motherboard replacement ever actually necessary?
It can be in cases of severe damage, but most genuine board faults are chip specific and can be fixed with a targeted repair rather than a full swap, which is also more cost effective and avoids firmware pairing complications that come with replacing the whole board.
How much does it cost to fix a gaming console motherboard?
Cost depends entirely on which component has failed and how extensive the damage is, since a single chip repair costs significantly less than more involved board level work. We give a clear quote after a free diagnostic so there are no surprises before you decide whether to proceed.
Will board level repair affect my saved games or account data?
In most cases no, since a targeted chip repair does not touch your storage. In more severe cases involving storage related components, we will explain any risk to your data clearly before proceeding.
How long does a motherboard repair take?
Board level repairs typically take longer than simpler fixes given the precision involved, often a few days to a week depending on the specific fault and part availability.
Is it worth repairing an older console’s motherboard, or should I just replace it?
It depends on the extent of the damage and the age of the console. For a contained, chip specific fault, repair is often still the more practical and affordable option compared to buying a replacement.
Why did a repair shop tell me my console needs a full motherboard replacement?
Some shops use this phrase as a general catch all even when the actual fix is a targeted chip level repair, which is usually more affordable. Getting a second opinion or asking for a specific breakdown of what failed is a reasonable step before agreeing to a full replacement.
